Being used widely Marine electric heating water tank

Place of Origin : China

Certification : CCS ,EC.GL,ABS

Price : US $ 1,000 - 20,000 / Set

Packaging Details : wooden case

Delivery Time : in one week

Payment Terms : T/T L/C

Supply Ability : 500 Set/Sets per Month

MOQ : 1 Set/Sets

Contact Now

HYDRG Series Electric Heating Water Tank for Ship/Pressure tank

1.Electric Heating Hot Water Tank
2.Electric Heater
3.Vessel pressure water tank
4.Durable, long lifetime
5.Performance Good

This series are suitable for heating water on the ship or platform,heated fresh water for crew use.This series hot water tank can be combined to use with fresh water pressure tank on board,namely use fresh water to renew the stock of hot water tank,and then heated by electtic for usage of entire vessel.

Type	HYDRG-
Type	0.12	0.2	0.3	0.5	1.0
Capacity(m3)	0.12	0.2	0.3	0.5	1.0
Working Pressure(MPa)			0.4
Design Pressure(MPa)			0.44
Test Pressure(MPa)			0.66
Safety valve open pressure(MPa)			0.42
Water Inlet Temp.(°C)			15
Water Outlet Temp.(°C)			65
Hot- water Capacity(kg/h)	180	360	540	720	900
Electric-heating power(Kw)	12	24	36	48	60
The laying of the outer surface of insulation layer thickness(mm)			40
Outsourcing galvanized steel thickness(mm)			0.7
Source	AC 380V.50Hz.three phase/AC 440V.60Hz.three phase
Weight(Kg)	198	243	299	308	513
DN	400	500	600	700	900
A	608	708	808	908	1108
B	688	790	911	824	1072
H	1241	1335	1417	1773	2090
d1	DN25		DN32		DN40
d2	3/4"			1"
b	393	445	516	469	617
h1	271	266	321	440	533
h2	540	580	630	/	/
C	320	330	370

Product Tags:

hot water tank

marine parts

drinking water

China Being used widely Marine electric heating water tank wholesale

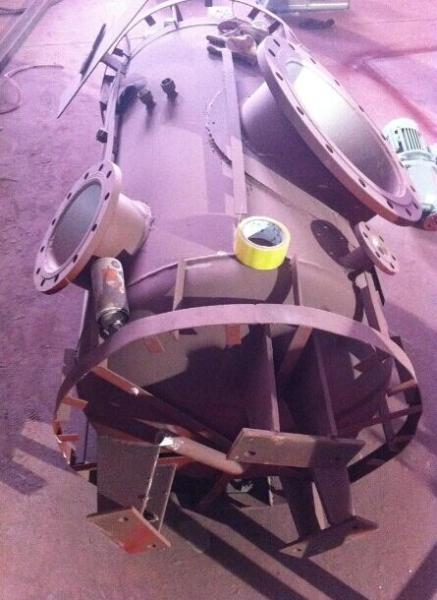

Being used widely Marine electric heating water tank Images
